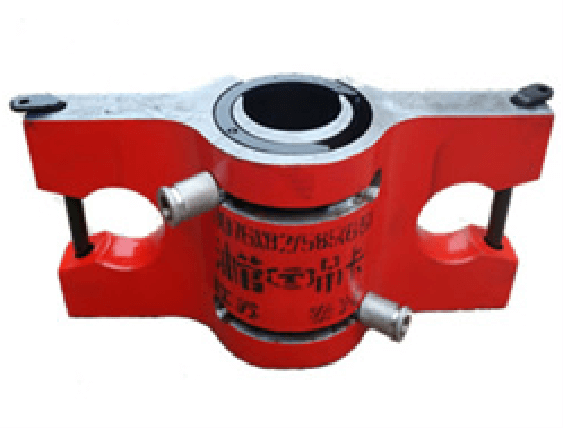

BD Locking ring type tubing elevators are conventional tools to handle the tubing in the oil and gas drilling operation.
2.Structural
BD Tubing Elevators are available with two types: single-latch and double-latch. Single-latch type one is equipped one latch assembly in the upper bore, while double-latch type one is equipped two latch assemblies both in the upper and lower bores. The body and ring-latch-lock are mainly to handle tubing.
Ring-latch-lock is fixed in eccentric notch of the body. With handle and M12 flat-ended screw, the state of ring-latch-lock can be range within 110° angle. Compressed spring is fixed in handle, when the handle is pull outwards approximately 8mm, the ring-latch-lock can be rotated, and when the ring-latch-lock is located "open" or "close", the handle can be fit in the position-fix hole.
Specification | Applicable for drill pipes(in) | Elevators bore O.D.(mm)(top bore×bottom bore) | reting load | Elevators tag |
BD1.9/40(50/360) | 1.9 | 50 | 40t(360kN) | BD1.9/40 SR1 API 8C PSL1 |
BD1.9EU/40(50/360) | 1.9EU | 55.95×55 | BD1.9EU/40 SR1 API 8C PSL1 | |
BD2 3/8/40(63/360) | 2 3/8 | 63 | BD2 3/8/40 SR1 API 8C PSL1 | |
BD2 3/8EU/40(63/360) | 2 3/8EU | 68.66×63 | BD2 3/8EU/40 SR1 API 8C PSL1 | |
BD2 7/8/40(75/360) | 2 7/8 | 75 | BD2 7/8/40 SR1 API 8C PSL1 | |
BD2 7/8EU/40(75/360) | 2 7/8EU | 81.36×75 | BD2 7/8EU/40 SR1 API 8C PSL1 | |
BD1.9/65(50/585) | 1.9 | 50 | 65t(585kN) | BD1.9/65 SR1 API 8C PSL1 |
BD1.9EU/65(50/585) | 1.9EU | 55.95×55 | BD1.9EU/65 SR1 API 8C PSL1 | |
BD2 3/8/65(63/585) | 2 3/8 | 63 | BD2 3/8/65 SR1 API 8C PSL1 | |
BD2 3/8EU/65(63/585) | 2 3/8EU | 68.66×63 | BD2 3/8EU/65 SR1 API 8C PSL1 | |
BD2 7/8/65(75/585) | 2 7/8 | 75 | BD2 7/8/65 SR1 API 8C PSL1 | |
BD2 7/8EU/65(75/585) | 2 7/8EU | 81.36×75 | BD2 7/8EU/65 SR1 API 8C PSL1 | |
BD3 1/2/65(91/585) | 3 1/2 | 91 | BD3 1/2/65 SR1 API 8C PSL1 | |
BD3 1/2EU/65(91/585) | 3 1/2EU | 98.02×91 | BD3 1/2EU/65 SR1 API 8C PSL1 | |
BD4/65(104/585) | 4 | 104 | BD4/65 SR1 API 8C PSL1 | |
BD4EU/65(104/585) | 4EU | 110.72×104 | BD4EU/65 SR1 API 8C PSL1 | |
BD4 1/2/65(117/585) | 4 1/2 | 117 | BD4 1/2/65 SR1 API 8C PSL1 | |
BD4 1/2EU/65(117/585) | 4 1/2 | 123.42×117 | BD4 1/2EU/65 SR1 API 8C PSL1 | |
BD1.9/75(50/675) | 1.9 | 50 | 75t(675kN) | BD1.9/75 SR1 API 8C PSL1 |
BD1.9EU/75(50/675) | 1.9EU | 55.95×55 | BD1.9EU/75 SR1 API 8C PSL1 | |
BD2 3/8/75(63/675) | 2 3/8 | 63 | BD2 3/8/75 SR1 API 8C PSL1 | |
BD2 3/8EU/75(63/675) | 2 3/8EU | 68.66×63 | BD2 3/8EU/75 SR1 API 8C PSL1 | |
BD2 7/8/75(75/675) | 2 7/8 | 75 | BD2 7/8/75 SR1 API 8C PSL1 | |
BD2 7/8EU/75(75/675) | 2 7/8EU | 81.36×75 | BD2 7/8EU/75 SR1 API 8C PSL1 | |
BD3 1/2/75(91/675) | 3 1/2 | 91 | BD3 1/2/75 SR1 API 8C PSL1 | |
BD3 1/2EU/75(91/675) | 3 1/2EU | 98.02×91 | BD3 1/2EU/75 SR1 API 8C PSL1 | |
BD4/75(104/675) | 4 | 104 | BD4/75 SR1 API 8C PSL1 | |
BD4EU/75(104/675) | 4EU | 110.72×104 | BD4EU/75 SR1 API 8C PSL1 | |
BD4 1/2/75(117/675) | 4 1/2 | 117 | BD4 1/2/75 SR1 API 8C PSL1 | |
BD4 1/2EU/75(117/675) | 4 1/2EU | 123.42×117 | BD4 1/2EU/75 SR1 API 8C PSL1 |
