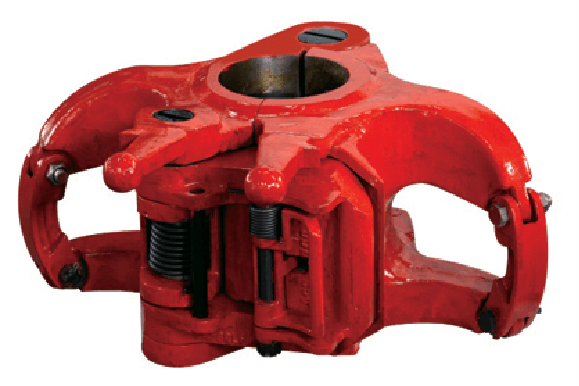

DDZ series elevators are conventional center latch elevator with 18 degree taper shoulder, applied in handling the drilling pipe and drilling tools, etc. The load ranges from 100 tons to 750 tons.Bestop Tools
DDZ series elevators are conventional center latch elevator with 18 degree taper shoulder, applied in handling the drilling pipe and drilling tools, etc. The load ranges from 100 tons to 750 tons. The size ranges are from 2.3/8" to 6.5/8". DDZ drill pipe elevators are forged from high quality alloy steel, heat-treated, and NDT tested. The products are designed and manufactured according to the requirements in API 8C Specification for Drilling and Production Hoisting Equipment.
Model | Size(in) | Rated Capacity (short tons) | Remark |
DDZ -100 | 2.3/8-5 | 100 | MG |
DDZ -150 | 2.3/8-5.1/2 | 150 | RG |
DDZ -250 | 2.3/8-5.1/2 | 250 | MGG |
DDZ -350 | 3.1/2-5.7/8 | 350 | GG |
DDZ -350TD | 3.1/2-5.7/8 | 350 | For Top Drive |
DDZ -500 | 3.1/2-6.5/8 | 500 | HGG |
DDZ -500TD | 3.1/2-6.5/8 | 500 | For Top Drive |
DDZ -750 | 4-6.5/8 | 750 |
