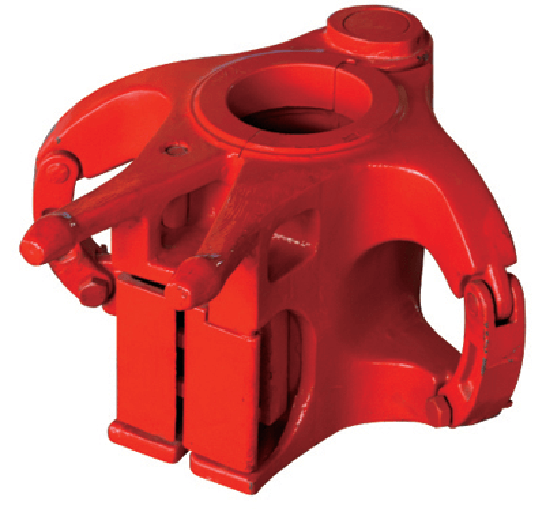

Model TA center latch elevators with square shoulder are suitable for handling drill collar, casing and tubing.
Model TA center latch elevators with square shoulder are suitable for handling drill collar, casing and tubing. The products are designed and manufactured according to the requirement in API Spec 8C Specification for Drilling and Production Hoisting Equipment.
型号 Model | 卡持管径 Size(in) | 额定载荷Rate Cap. (Short Tons) | |||
钻铤 DC | 油管 Tubing | 套管(Casing) | |||
NU | EU | ||||
TA-35 | 2 7/8-3 1/8 | 1.05-2 7/8 | 1.05-2 7/8 | / | 35 |
TA-65 | 2 7/8-3 1/8 | 1.66-2 7/8 | 1.66-2 7/8 | / | 65 |
TA-100 | 3 7/8-5 1/4 | 2 3/8-5 | 2 3/8-5 | / | 100 |
TA-150 | 4 1/8-11 1/4 | / | / | 4 1/2-10 3/4 | 150 |
