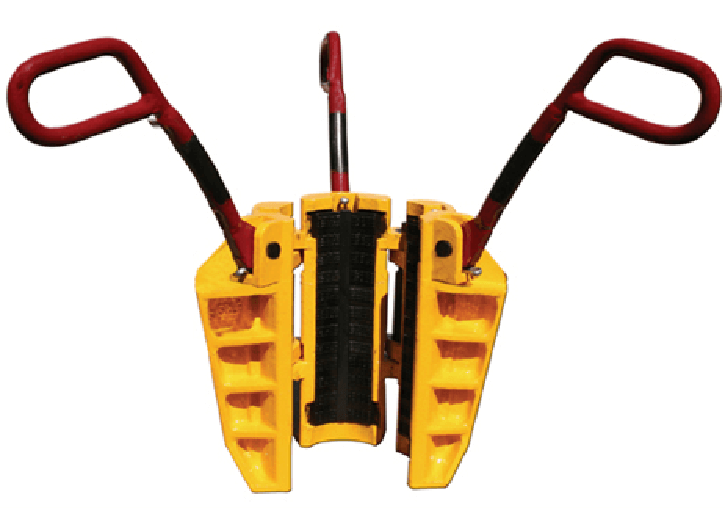

The “DU” Rotary slips are designed for long trouble free service. They are made of alloy steel and heat-treated for strength and resistance to wear. They are for use in API tapered bowls.
The “DU” Rotary slips are designed for long trouble free service. They are made of alloy steel and heat-treated for strength and resistance to wear. They are for use in API tapered bowls.
TYPE | Pipe OD | Inserts | Weight | ||||
in | mm | Part No. | Qty | ||||
DU
|
31/2 | 23/8 | 23/8 | 60.3 | - | - | - |
27/8 | 27/8 | 73 | - | - | - | ||
31/2 | 31/2 | 88.9 | - | - | - | ||
41/2 | 31/2 | 31/2 | 88.9 | 7613-C-82 | 18 | 150 | |
4 | 4 | 101.6 | 7613-FF-81 | 18 | 141 | ||
41/2 | 41/2 | 114.3 | 7613-A-81 | 18 | 136 | ||
51/2 | 41/2 | 41/2 | 114.3 | 7613-E-81 | 18 | 164 | |
5 | 5 | 127 | 7613-G-81 | 18 | 159 | ||
51/2 | 51/2 | 139.7 | 7613-H-81 | 18 | 146 | ||
7 | 51/2 | 51/2 | 139.7 | 7613-Z-81 | 18 | 190 | |
65/8 | 65/8 | 168.3 | 7613-DD-81 | 18 | 164 | ||
7 | 7 | 177.8 | 7613-EE-81 | 18 | 154 | ||
